Formations¶
Cloud-agnostic IaC recipes for deploying infrastructure, applications, and services across the Supercloud.
Overview¶
RosettaHub Formations are cloud-agnostic IaC recipes that describe the infrastructure resources, applications, security credentials, and SSL certificates needed to create a service on any cloud. Think of a formation as a blueprint that can be used repeatedly to create identical infrastructure across AWS, Azure, GCP, Alibaba Cloud, OVH, and OpenStack -- all from a single template.
When you launch a formation, RosettaHub creates a session containing one or more machines (cloud instances). The formation itself remains unchanged - it's the template from which instances are created. Formations launch under your organization's budget controls and policy enforcement, ensuring that every deployment stays within approved guardrails.
| Concept | Description |
|---|---|
| Formation | Recipe/template defining infrastructure |
| Launch | Action that creates instances from the recipe |
| Session | Active deployment with running machines |
| Machine | Individual cloud instance |
Formations are cloud-agnostic, enabling deployment across AWS, Azure, GCP, Alibaba Cloud, OVH, and OpenStack from a single template. They also serve as a powerful sharing mechanism -- users with access to a shared formation can deploy complex applications with a single click. For more on how formations fit into the MetaCloud layer, see the MetaCloud overview.
Two steps to a running environment
For end users the experience is simple: Launch your formation, then Connect to the running session. Everything else -- provisioning, networking, storage mounting, credential injection -- happens automatically behind the scenes.

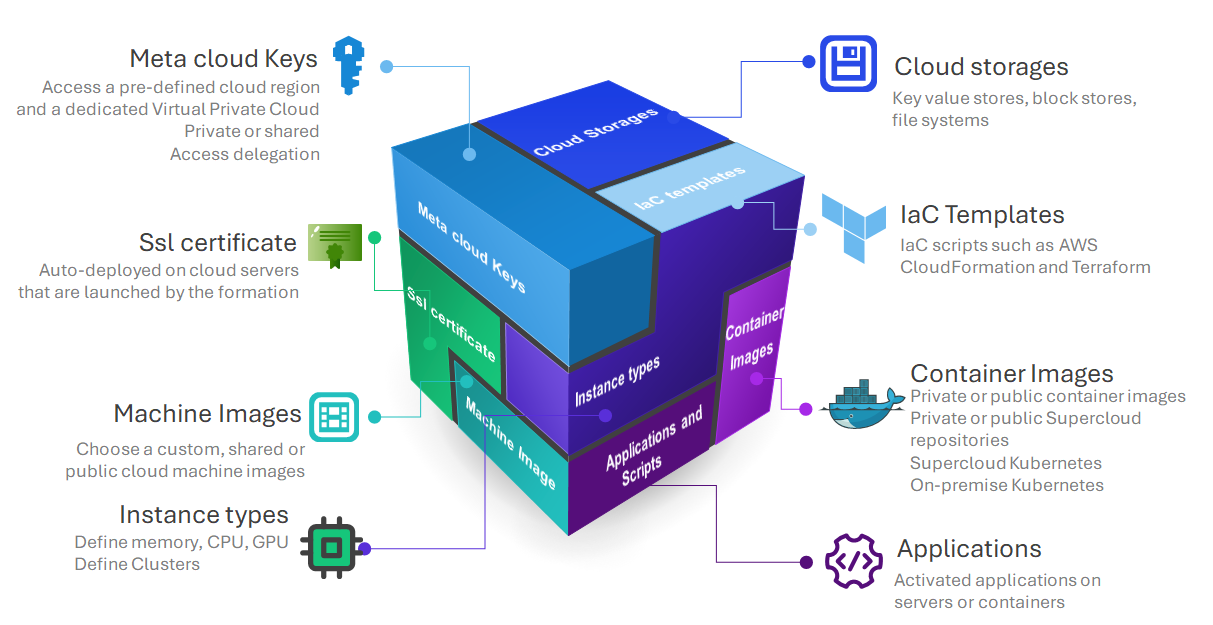

What Goes Into a Formation¶
A formation is composed of up to ten building blocks. Not every formation uses all of them -- you include only what your workload requires.
| Component | Purpose |
|---|---|
| Cloud Keys | MetaCloud keys that grant the formation access to deploy on a specific cloud account and region -- each key includes a dedicated VPC automatically created by RosettaHub |
| Machine Images | Custom, shared, or public cloud images that define the OS and pre-installed software |
| Instance Types | CPU, memory, and GPU specifications for the machines that will be launched |
| Cloud Storages | Storages -- key-value stores, block stores, file systems -- auto-mounted on launched machines |
| Container Images | Private or public Docker/OCI container images (Docker formations) |
| Applications and Scripts | Software activated on servers or containers at launch time |
| IaC Templates | Infrastructure as Code scripts -- AWS CloudFormation, CDK, Terraform, OpenTofu, Pulumi -- executed during provisioning |
| SSL Certificates | HTTPS certificates auto-deployed on machines launched by the formation |
| Cluster Definitions | Worker node counts, instance types, and configuration for EMR/Dataproc/HPC cluster formations |
These components combine into a single template that can be launched repeatedly, shared with collaborators, or published to a marketplace -- producing identical, governed environments every time.
Formation Lifecycle¶
Formations follow a seven-step lifecycle that enables reproducible, shareable service delivery:
graph LR
A["1. Clone"] --> B["2. Customize"]
B --> C["3. Configure"]
C --> D["4. Launch"]
D --> E["5. Connect & Install"]
E --> F["6. Snapshot"]
F --> G["7. Share / Publish"]
G -.->|Iterate| A
style A fill:#e3f2fd,stroke:#1565c0,color:#000
style B fill:#e3f2fd,stroke:#1565c0,color:#000
style C fill:#e3f2fd,stroke:#1565c0,color:#000
style D fill:#fff3e0,stroke:#e65100,color:#000
style E fill:#fff3e0,stroke:#e65100,color:#000
style F fill:#e8f5e9,stroke:#2e7d32,color:#000
style G fill:#e8f5e9,stroke:#2e7d32,color:#000| Step | What Happens |
|---|---|
| Clone | Start from a shared formation, marketplace entry, or service catalog that is close to your requirements |
| Customize | Update the formation's label, description, and appearance |
| Configure | Set the cloud images, storages, instance types, IaC templates, and other components |
| Launch | Deploy the formation -- RosettaHub provisions all resources automatically |
| Connect and Install | Access the running session and install any additional software |
| Snapshot | Capture the running machine as a new image, preserving your customizations |
| Share / Publish | Share the formation with colleagues, publish it to an institutional marketplace, or list it in a service catalog |
After publishing, others can clone your formation and repeat the cycle -- creating a flywheel of reproducible, community-driven environments.
Formation Types¶
RosettaHub supports several formation types, each available in both On-Demand and Spot modes. Spot formations launch Spot/Preemptible instances at 60-90% discounts compared to on-demand pricing, with built-in spot instance hibernation to preserve machine state when the cloud provider reclaims capacity.
| Type | Description | Session Structure |
|---|---|---|
| Machine | Single instance from any cloud image | One machine |
| Docker | Single instance with pre-configured containers (Jupyter, RStudio, etc.) | One machine with browser access |
| Machine Pool | Pool of identical machines for batch processing or workshops | Multiple independent machines |
| Virtual Lab | Any image accessible via browser-based virtual desktop | Proxy + target machine |
| Big Data Cluster | Managed Spark/Hadoop clusters (EMR, Dataproc, HDInsight, E-MapReduce) | Proxy + master + workers |
| HPC Cluster | Dedicated HPC clusters for scientific computing | Head node + compute nodes + shared storage |
Creating Formations¶
Method 1: Create from Scratch¶
Create a new formation by specifying all configuration:
- Click Create Formation in the Formations panel
- Select the formation type (Machine, Pool, Virtual Lab, etc.)
- Configure:
- Image - Base machine or Docker image
- Cloud Key - Credentials for deployment
- Instance Type - Compute resources
- Region - Deployment location
- Additional settings specific to formation type
- Save the formation
This method gives you full control over all settings but requires more configuration.
Method 2: Clone an Existing Formation¶
Start from a public or shared formation:
- Find a formation in the Formations panel
- Right-click and select Clone
- RosettaHub creates a copy with your default keys and certificates
- Customize as needed
Cloning is the quickest way to get started with tested, working configurations.
Working with Formations¶
Customizing Your Formation¶
After creating or cloning a formation:
Customize Appearance¶
Change the formation's metadata:
- Label - Display name
- Description - What the formation does
- Icon - Visual identifier
Update Settings¶
Configure formation parameters:
| Setting | Description |
|---|---|
| Instance Type | Compute resources (CPU, memory) |
| Spot Bid Price | Maximum price for Spot instances |
| SSL Certificate | HTTPS certificate for secure access |
| Cluster Nodes | Number of worker nodes (clusters only) |
| Region | Deployment location |
Configure Machine Launch Options¶
Fine-tune machine settings:
- Root Disk Size - Storage for the operating system
- Container Settings - Volumes, applications, environment variables
- Network Configuration - VPC, subnets, security groups
Launching a Formation¶
Deploy your formation to create running instances:
- Select the formation
- Click Launch or double-click
- RosettaHub provisions all resources automatically
- A session is created with one or more machines
- Machines appear in the Machines panel
Formation vs Machine Actions
After launching, you manage the session, not the formation. Stop, start, hibernate, and delete actions apply to machines within the session. See Sessions for lifecycle management.
Connecting to Your Session¶
Access your running machines:
- SSH - Terminal access to Linux instances
- RDP - Desktop access to Windows instances
- Web Interface - Browser-based access (Jupyter, RStudio, etc.)
- Virtual Desktop - Full graphical desktop in browser
Creating Images from Sessions¶
Capture customizations from a running machine:
- Launch a formation and connect to the machine
- Install additional software and configure the environment
- In the Machines panel, select your machine
- Right-click and choose Snapshot
- The new image can be used in formations
Formation Actions¶
Management Actions¶
| Action | Description |
|---|---|
| Create | Create a new formation from scratch |
| Clone | Create a copy with your keys and certificates |
| Customize | Change label, description, icon |
| Update | Modify instance type, spot price, SSL certificate, nodes |
| Configure Container | Edit Docker container settings (managed images) |
| Configure Machine Launch Options | Set disk size, network, startup scripts |
| Delete | Remove the formation |
Deployment Actions¶
| Action | Description |
|---|---|
| Launch | Deploy the formation to create machines |
Sharing Actions¶
| Action | Description |
|---|---|
| Share | Grant access to users, groups, or organizations |
| Publish | List on the RosettaHub Marketplace (share with "hub" first) |
Batch Actions (for Shared Formations)¶
| Action | Description |
|---|---|
| Launch on Sharees | Deploy formation for all users it's shared with |
| Stop on Sharees | Stop machines for all sharees |
| Delete on Sharees | Remove machines for all sharees |
Organization Actions¶
For organization managers:
| Action | Description |
|---|---|
| Set Default Formation UIDs | Define default formations for the organization |
| Launch Organization Formations | Deploy all default formations |
| Stop Organization Formation Instances | Stop all default formation machines |
| Start Organization Formation Instances | Start all stopped machines |
| Delete Organization Formation Instances | Remove all formation machines |
Spot vs On-Demand¶
| Aspect | On-Demand | Spot |
|---|---|---|
| Pricing | Standard rates | 60-90% discount |
| Availability | Guaranteed | May be interrupted |
| Use Case | Production, critical workloads | Development, batch processing, fault-tolerant tasks |
| Termination | User-controlled | Provider may reclaim |
Spot Best Practices
- Enable Snapshot on Termination or Spot Hibernation to preserve work automatically
- Use Fallback to On-Demand for critical tasks
- Choose instance types with better Spot availability
- Leverage hibernation to resume exactly where you left off when capacity returns
Best Practices¶
Formation Design
- Start from tested public formations when possible
- Document your customizations in the description
- Use meaningful labels that describe the purpose
- Test formations before sharing
Resource Management
- Stop machines when not in use (see Sessions)
- Use Spot instances for development and testing
- Set up auto-stop timeouts for idle resources
- Delete unused sessions to avoid charges
Sharing
- Test formations thoroughly before sharing
- Include clear instructions in the description
- Consider creating organization-specific variations
- Keep shared formations stable
Sharing and Collaboration¶
Formations are designed for sharing. RosettaHub provides four collaboration models that work across organizational and cloud boundaries.
URL-Based Sharing¶
Share a formation as a simple link. Recipients click the URL, select their own cloud key, and launch -- deploying a full environment from a shared template without manual configuration.
Institutional Collaboration¶
Share formations across organizational boundaries. A research group at one institution can share an environment with collaborators at another, each launching under their own budgets and governance policies.
Private and Public Marketplaces¶
Curate formations into institutional service catalogs (private marketplaces) or publish them to the RosettaHub public marketplace. Marketplaces act as self-service portals where users browse, select, and launch pre-approved environments.
Cross-Cloud Portability¶
Formations adapt to any target cloud. A formation built on AWS can be launched on Azure, GCP, or a private cloud -- the recipient chooses where to deploy. This ensures that sharing is never constrained by which provider either party uses.
